Bowed Basement Wall Repair in Langley, BC

Repair Methods

Wall anchors are the standard fix for mild to moderate bowing where exterior yard access is available. A steel plate goes into the yard roughly 8 to 10 feet from the house, connects through the wall to an interior plate, and the rod is tightened over time to gradually pull the wall back toward plumb, spaced roughly every 5 to 6 feet along the affected wall.

Carbon fibre straps are the right call when yard access isn't available, or the goal is stopping further movement rather than reversing it. Strips of carbon fibre fabric are epoxied vertically to the interior wall face, top and bottom, creating a tension band that resists further inward movement without excavation. For severe cases, walls bowed more than 2 inches or showing shear cracking, steel I-beams set floor to joist are the more involved and more effective option.

How Much Bowing Is Safe to Monitor

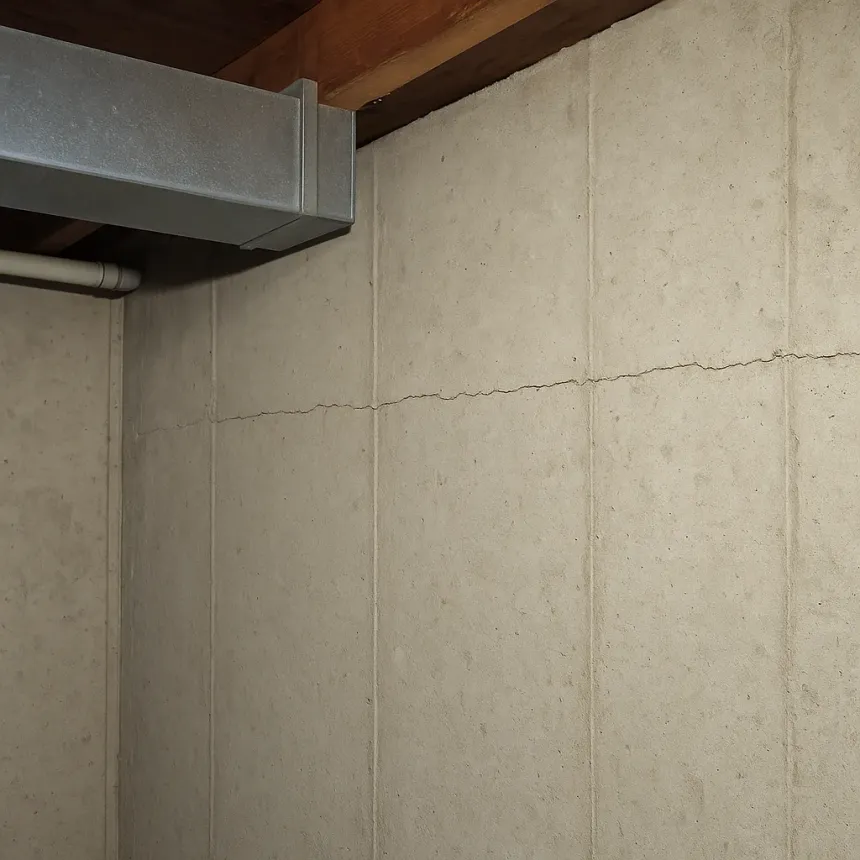

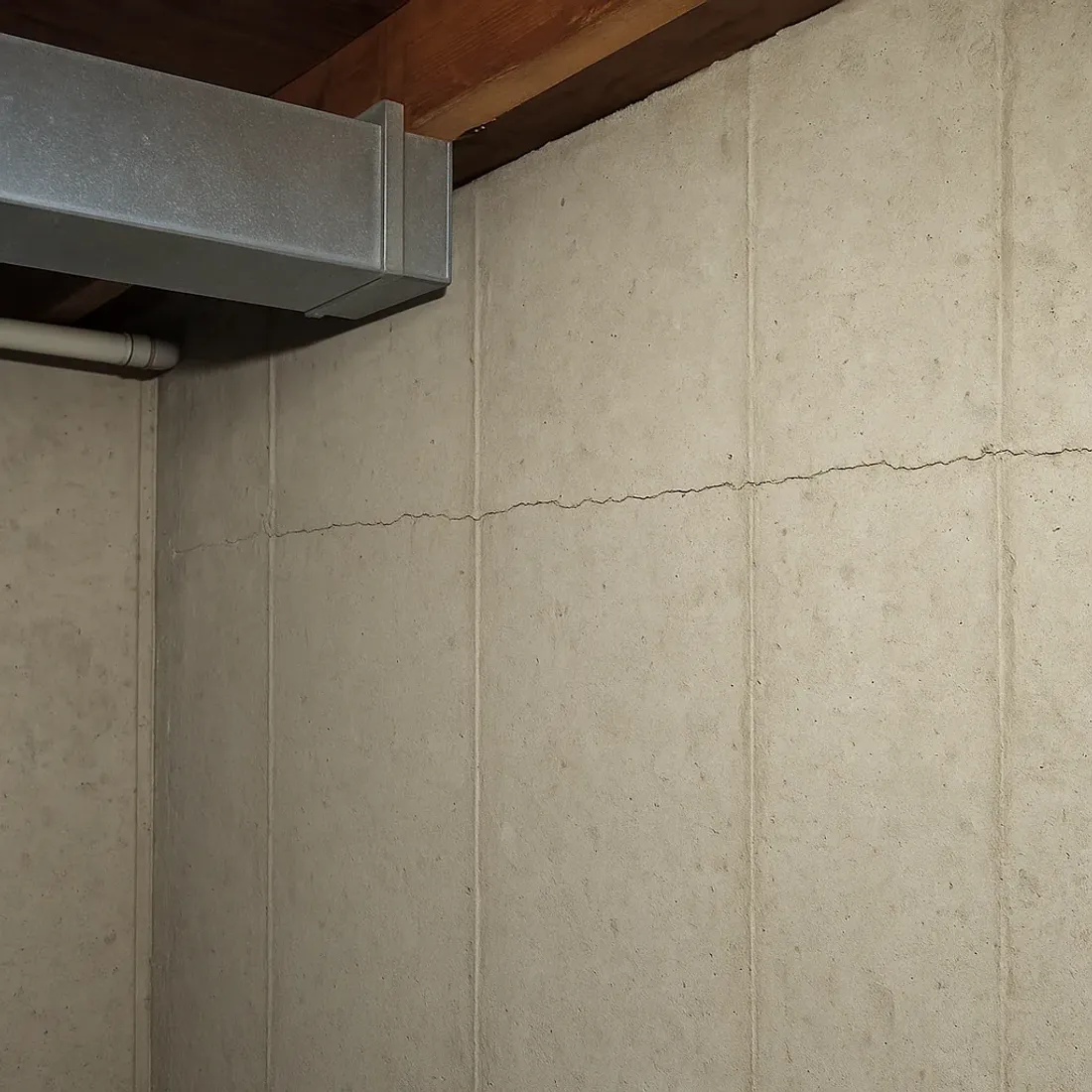

Bowing happens when saturated Fraser Valley clay expands against a basement wall from the outside, pushing it inward. A wall bowed less than an inch with no active cracking is often something we recommend monitoring with periodic measurements rather than repairing immediately.

Once bowing passes roughly an inch, or horizontal cracking starts developing along the bow, it's time to act. Past 2 inches, anchors and straps alone are usually no longer enough, and I-beams or a fuller structural approach become the realistic options. Bowing rarely reverses itself and rarely stays static, a wall that measured a half inch last year is worth remeasuring, not assuming it's stopped.

Cost

Carbon fibre straps typically run $800–$1,500 per strap installed, spaced roughly every 4 feet, so a 20-foot wall usually needs 5 to 6 straps. Wall anchors run somewhat higher per point of reinforcement given the exterior excavation involved. Steel I-beams cost more per beam for severe cases, with total project cost climbing accordingly. The exact number depends on wall length, severity, and whether crack repair or waterproofing is needed alongside the structural fix, which we always quote as a separate line item.

What Happens If a Bowing Wall Goes Untreated

A bowing wall doesn't stabilize on its own. The same seasonal soil pressure that started the bow keeps applying force every wet season, and the wall keeps moving, slowly at first, then faster as cracks develop and structural capacity drops. A repair that would have cost a few thousand dollars caught early can turn into a much larger structural rebuild if the wall keeps moving for several more wet seasons. If you've noticed a bow in a basement wall, even a small one, it's worth getting it measured now.
